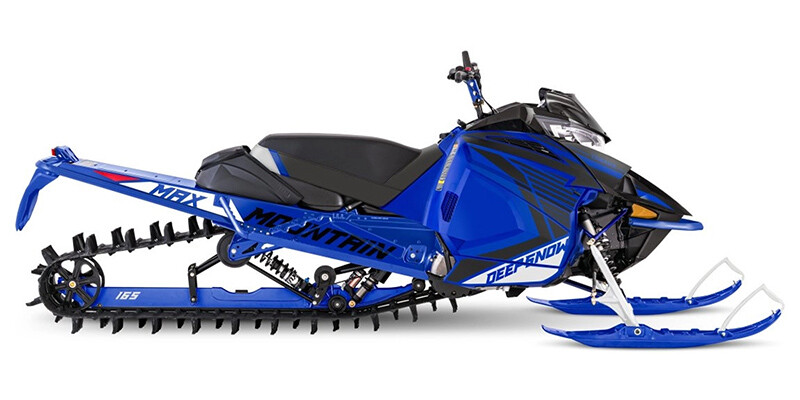

Mountain Max LE 165

Mountain Max LE 165

Description

MOUNTAIN MAX LE 165
Modern mountain sleds have become extremely specialized and Yamaha Mountain Max models are very special machines. Lightweight, powerful and bristling with features dedicated to mastering the slopes.

TOP FEATURES
Mountain Single-Beam Suspension
The long, 15-inch travel rear suspension features a lightweight single-beam skid frame to provide exceptional handling in the deep and steep. This advanced skid frame features a single pivot at the midpoint of the rail that runs down the centerline of the track. The resulting track flexibility and balance point is realized in precise handling response. It's never been easier to throw a carve, regardless of pitch or incline. The single-rail system is over 10 pounds lighter by design and doesn't trap snow compared to conventional dual-rail suspensions, keeping the sled much lighter in real-world conditions.

PREMIUM FOX ZERO QS3 SHOCK PACKAGE
Fox Zero QS3 shock package, coil spring, high-pressure gas shocks feature a piggyback chamber to deliver reduced fading, exceptional control, and three easy to adjust compression damping performance settings, so you can quickly and easily adjust the ride to conditions and your riding preference.

165" POWER CLAW TRACK
This 165-inch long, single-ply, Power Claw track uses 3-inch lugs in a 3.5-inch pitch configuration. The long, forward curved paddles are staggered to bite into the deepest powder. Forward motion and lift are guaranteed by the extended length to get you up and over the steepest slopes.

Specifications

  • Engine
    add remove
    • Engine Type
      2-Stroke / 794 cc
    • Cylinders
      2
    • Engine Stroke
      2-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      Reed Valve
    • Displacement (cc)
      794
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Engine Block Heater
      Optional
    • Engine Class
      High Performance
    • Fuel Delivery
      Batteryless Electronic Fuel Injection
    • Fuel Capacity
      10.6 gal. (40.1 L)
  • Chassis
    add remove
    • Front Suspension
      Independent Double Wishbone
    • Front Shocks
      Yamaha Mountain
    • Front Travel
      7" (178 mm)
    • Rear Suspension
      Mountain Single-Beam
    • Rear Shock(s)
      Fox 2.0 Zero QS3L
    • Rear Travel
      15" (381 mm)
    • Center Shock
      Fox 1.5 Zero QS3
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Travel (in)
      7
    • Adjustment Type
      Shock Mounted Adjustment
    • Front Stabilizer Bar
      No
    • Front Shock Absorber Type
      High Pressure Gas
    • Rear Travel (in)
      15
    • Number Rear Shock Absorbers
      2
    • Rear Stabilizer Bar
      No
    • Rear Shock Absorber Type
      High Pressure Gas
    • Center Shock Absorber Type
      High Pressure Gas
    • Front Shock Absorber Brand
      Fox® 1.5 Zero QS3
    • Coil Over Shock
      Yes
    • Rear Shock Absorber Brand
      Fox® 2.0 Zero QS3
    • Front Suspension Brand Name
      SRV
    • Center Shock Absorber Brand
      Fox® 1.5 Zero QS3
  • Dimensions
    add remove
    • Track / W x L x H
      15" x 165" x 3.0"
    • Ski Stance (ctr to ctr)
      36" (914 mm) adjustable
  • DRIVE LINE
    add remove
    • Track Brand
      Power Claw
    • Track Length (in)
      165
    • Track Width (in)
      15
    • Lug Height (in)
      3
    • Number Of Tracks
      1
  • TECHNICAL SPECIFICATIONS
    add remove
    • Minimum Ski Stance (in)
      36
    • Fuel Capacity (gal)
      10.6
  • Colour options
    add remove
    • Team Yamaha Blue
