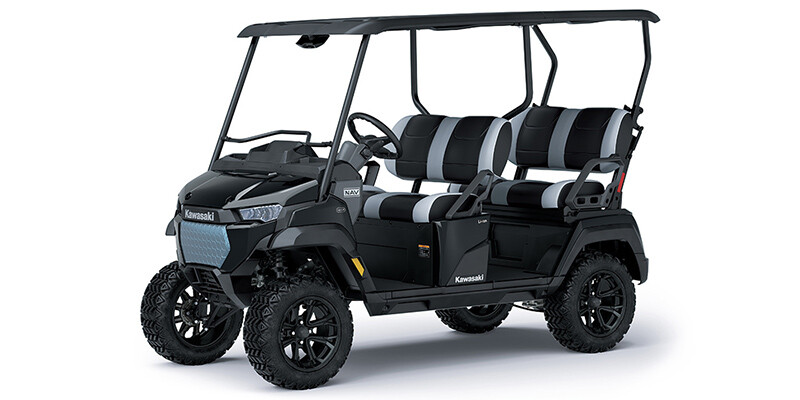

2025 NAV^® 4e LE

Specifications

• PRICING

  add remove
  • Price
    Standard
  • MSRP
    11999
  • Currency
    US Dollars
  • Warranty (Months)
    24
• ENGINE

  add remove
  • Engine
    Standard
  • Engine Type
    Electric
• ELECTRIC ENGINE

  add remove
  • Electric Engine
    Standard
  • Electric Motor Type
    AC
  • Engine Capacity kW (Normal)
    4
  • Engine Capacity kW (Max)
    10.7
  • Battery
    Standard
  • Battery Type
    Lithium Ion
  • Number of Batteries
    2
• TRANSMISSION

  add remove
  • Transmission
    Standard
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    4X2
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (ft)
    9.55
  • Length (in)
    114.6
  • Length (m)
    2.9
  • Length (mm)
    2900
  • Width (in)
    51.6
  • Width (mm)
    1310.6
  • Height (in)
    77.6
  • Height (mm)
    1971
  • Wheelbase (in)
    79.9
  • Wheelbase (mm)
    2029.5
  • Ground Clearance (in)
    7.3
  • Ground Clearance (mm)
    185.4
  • Weight
    Standard
  • Dry Weight (lbs)
    1005.5
  • Dry Weight (kg)
    456.1
  • Towing Capacity (lbs)
    500
  • Towing Capacity (kgs)
    226.8
  • Capacities
    Standard
  • Weight Capacity (lbs)
    800
  • Weight Capacity (kg)
    362.9
  • Fuel Capacity (gal)
    0
  • Fuel Capacity (l)
    0
  • Performance
    Standard
• EXTERIOR

  add remove
  • Construction
    Standard
  • Frame
    Steel
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent Double A-Arm
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Leaf Spring
• WHEELS & TIRES

  add remove
  • Tires
    Standard
  • Front Tire (Full Spec)
    23 x 10-14
  • Rear Tire (Full Spec)
    23 x 10-14
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Not Available
  • Rear Brake Type
    Drum
• SEATS

  add remove
  • Seat Specifications
    Standard
  • Number Of Seats
    4
• INSTRUMENTATION

  add remove
  • Trip Odometer
    Standard
• PAINT & FINISH

  add remove
  • Paint
    Standard
  • Secondary Color
    Not Available
• Colour options

  add remove
  • Super Black
